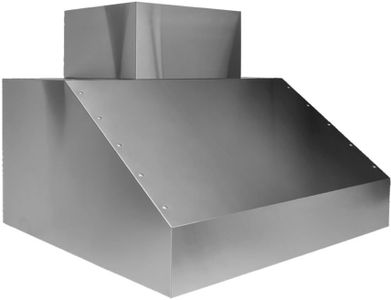

Trade-Wind® 7200 Series 72" Stainless Steel Outdoor Barbecue Hood

Product Overview

Distinctive BBQ Hood Design

Simplicity of design and function

Available in 36”, 42”, 48”, 54”, 60”, 66” and 72″ widths

Generously proportioned 32” depth at bottom, 15″ depth at top, 24″ high hood provides an exceptional capture area

Design of the stainless steel commercial baffle filters adds a professional appearance and improved performance

Enduring Quality

Two or four internal sealed motors deliver 1200 CFM or 2300 CFM

Heavy gauge commercial stainless steel (#304 grade, 22-gauge)

Four 12” by 14” baffle filters improve performance (six or eight filters on larger models)

Dimmable 50 watt halogen lights

Optional in-line blowers deliver 1266 CFM

Easy Installation & Cleaning

Remote blower models are pre-wired for use with most in-line or exterior blowers (6 Amp maximum draw)

Hoods with internal blowers are all pre-wired and pre-assembled

Top only 10″ round discharge (two 10” on larger models), for rear discharge use a 10″ 90 degree elbow

Optional 2 piece, telescopic single (18″ wide) or double ( 30″ wide) Duct Covers are available, for up to 10′ ceiling, or additional Duct Covers up to 12′ ceiling

Durable, dishwasher safe, commercial stainless steel baffle filters

All stainless steel exterior design is easy to keep clean and eliminates grease traps

Additional Features

2300 CFM INTERNAL BLOWERS, 3 speed control (x2)

3 Dimmable Halogen Lights (Bulbs Included)

8 #304 Grade Stainless Steel Baffle Filters

Dual 10” Round Start Collar, Requires x2 10” Ducts

Design

Combining function & beauty like never before.

Quality

We build our Hoods and Liners with the finest materials.

Performance

Our products are high powered yet quiet & efficient.

Experience

Since 1950 we have been committed to being the innovative leader in kitchen & bath ventilation.

Reliability

We offer a 3 year warranty and all our products are UL or ETL certified both in the United States & Canada.

People

Our professionals make the difference.

*Trade-Wind® disclaims and excludes any liability for implied warranties or for incidental or consequential damages wherever permitted by law. There are no implied warranties of merchantability or fitness for a particular use or purpose. This warranty gives you specific legal rights and you may also have other rights, which vary from state to state.
